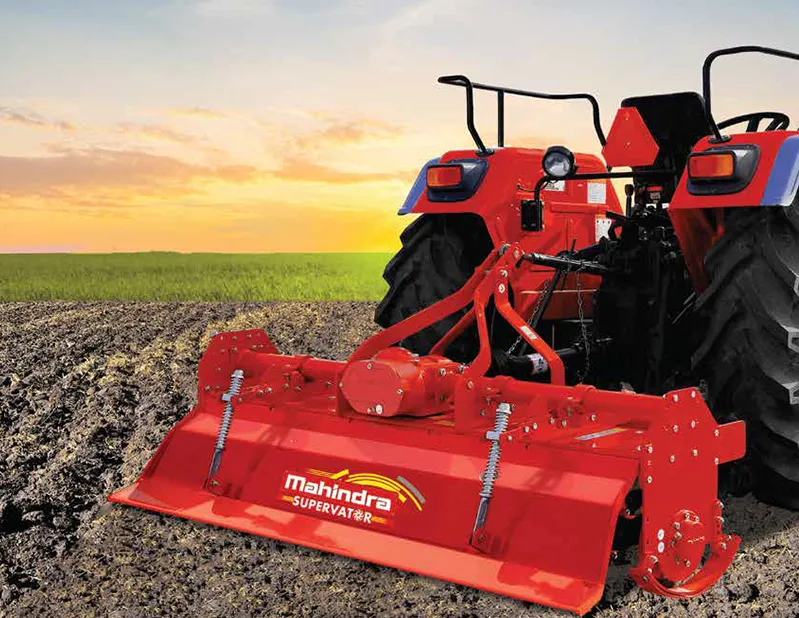

ROTAVATOR
Features & benefits
- Heavy duty side gear drive in oil bath which ensures high performance in all working conditions.
- Can loosen & aerate soil up to 7 inches deep.
- In Rotavator boron steel blades that last 50% more than Hi Carbon.
- Helically arranged blades put less load on the tractor which makes tillage fast and economical.
- Heavy duty PTO shaft for overload protection.
- Sealed bearings prevent moisture or mud entry.
- Stowing Paint on Rotavator according to European standard.
Specifications
| DESCRIPTION | AQR36 | AQR42 | AQR48 | AQR54 | AQR60 | AQR66 |
|---|---|---|---|---|---|---|
| Working Width | 59″ | 68″ | 77″ | 86″ | 95″ | 104″ |
| Working Depth | 4″ – 5″ | |||||
| Gear Box | Multispeed Transmission | |||||
| Side Gear | Gear Drive | |||||
| Rotary RPM | 208 / 233 / 261 / 293 | |||||
| Total Blades | 36 | 42 | 48 | 54 | 60 | 66 |
| Tractor HP | 40–45 | 45–50 | 50–60 | 60–70 | 70–80 | 70–80 |
